Leeds Station
Signal Disconnection Box
GrayBar were asked to design and build three suitable Signal Disconnection Boxes to control Signals on Leeds Station, complete with a GRP Mounting Assembly.
![](/images/18.5231935617d5c9a2f2c74e9d/1638367211457/L3662%20G%20Dis%20Box%20800x500px.jpg)

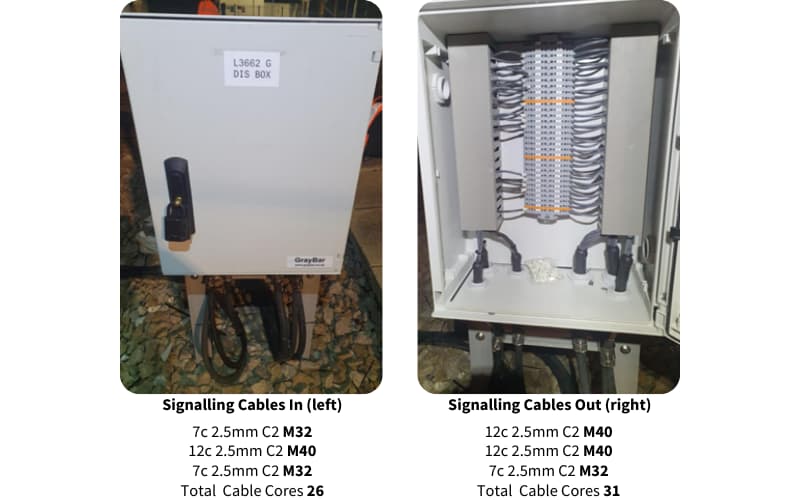

The enclosures required 31 Wago Terminals and Glands to suit and were to have the following cables terminated within the enclosure which was 500x400x200mm in size (PADS No 086/000137)
![L3662 G Dis Box](/images/18.5231935617d5c9a2f2c74e9b/1638367205626/L3662%20G%20Dis%20Box%20800x500px_1.jpg)

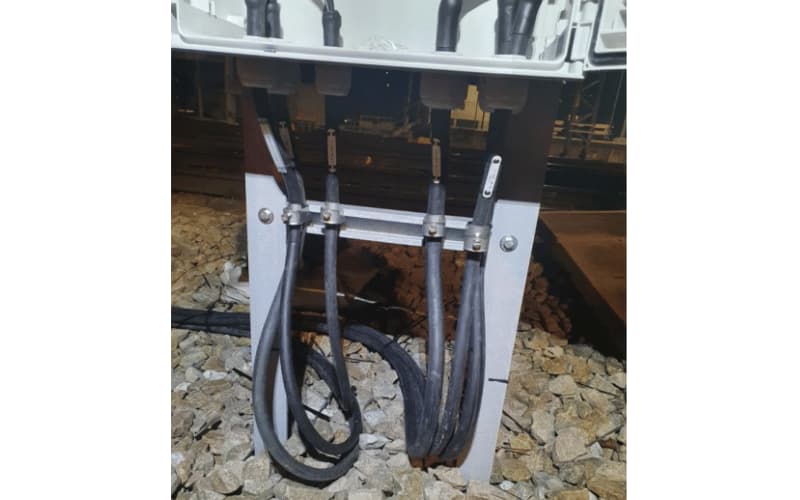

The Disconnection Boxes were mounted on GRP Mounting Assemblies GBK4139 (PADS No 086/001504), these are fitted with a Cable Bar to manage the cables.
This product is lightweight, non-conductive, and is designed for quick installation, as no earthing is required.
- Signals
- Points
- Axle Counters
- AWS
- TPWS
- Track Circuits
- Restricted Clearance
- Semi-Automatic Warning Systems (SATWS)
- Points Heating
