Multicore Cable Accessories

Products

PADS Approved

  • Lineside Multicore Signalling Cable Jointing Kits
    Complete with Approved Crimp Connectors

    Part Reference

    PADS No.

    Description

    Cable Range / P.A.D.S No.

    GBK2007-12

    054/015870

    Lineside Multicore Jointing Kit

    for 7 to 12 core Cable

    0.75-1.5mm² (Type B2 Cable)
    (006/120091, 006/120093, 006/120094,006/120096, 006/120097)

    GBK2007-19

    054/015871

    Lineside Multicore Jointing Kit

    for 19 core Cable

    0.75-1.5mm² (Type B2 cable)
    (006/120099, 006/120100)

    GBK2008-27

    054/015874

    Lineside Multicore Jointing Kit

    for 27 core Cable

    0.75-1.5mm²(Type B2 Cable)
    (006/120102, 006/120103)

    GBK2008-37

    054/015872

    Lineside Multicore Jointing Kit

    for 37 core Cable

    0.75-1.5mm² (Type B2 Cable)
    (006/120105, 006/120106)

    GBK2009-48

    054/037009

    Lineside Multicore Jointing Kit

    for 48 core Cable

    0.75-1.5mm² (Type B2 Cable)
    (006/120108, 006/120109)

    GBK2009-61

    054/015880

    Lineside Multicore Jointing Kit

    for 61 core Cable

    0.75-1.5mm² (Type B2 Cable)
    (006/120108, 006/120109)

    GBK1220

    054/037120

    Lineside Multicore Jointing Kit

    for 7 to 12 core Cable

    2.5mm² (Type B2 Cable)
    (006/120092, 006/120095, 006/120098)

    GBK1339

    054/037121

    Lineside Multicore Jointing Kit

    for 19 core Cable

    2.5mm² (Type B2 cable)
    (006/120101)

    GBK1344

    054/037122

    Lineside Multicore Jointing Kit

    for 27 core Cable

    2.5mm² (Type B2 Cable)
    (006/120104)

    GBK1278

    054/037123

    Lineside Multicore Jointing Kit

    for 37 core Cable

    2.5mm² (Type B2 cable)
    (006/120107)

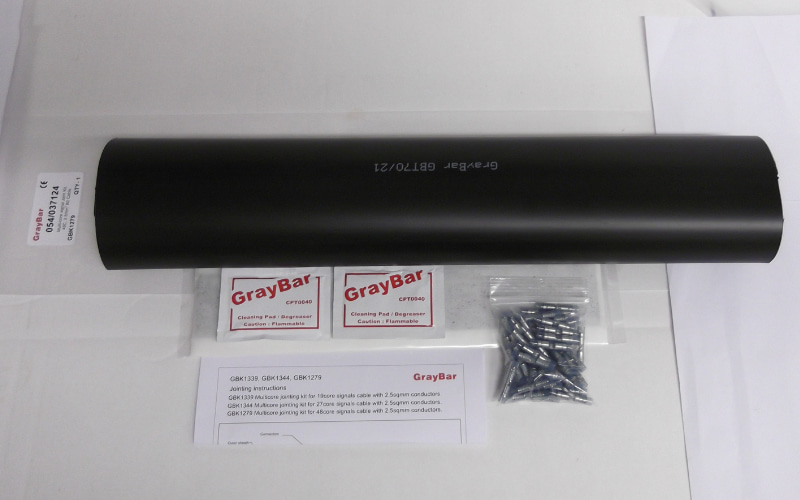

    GBK1279

    054/037124

    Lineside Multicore Jointing Kit

    for 48 core Cable

    2.5mm² (Type B2 cable)
    (006/120110)


    Excluding crimp connectors

    GBK2010

    054/037008

    Lineside Multicore Jointing Kit (similar to GBK 2007)

    1/0.85mm to 1/1.53mm

    GBK2011

    054/015746

    Lineside Multicore Jointing Kit

    (similar to GBK 2008)

    1/0.85mm to 1/1.53mm

    GBK2012

    054/037011

    Lineside Multicore Jointing Kit (similar to GBK 2009)

    1/0.85mm to 1/1.53mm


    GBK2007-12

    GBK2007-19

    GBK2008-27

    GBK2008-37

    GBK2009-48

    GBK1220

    GBK1339

    GBK1344

    GBK1278

    GBK1279

    • Special Lineside Mulicore Cable Jointing Kits
      Standard signalling cable jointed to paper insulated and lead covered signalling cable

      Part Reference

      PADS No.

      Description

      Cable Range / Type

      GBK1328

      054/015848

      Transition Joint Kit for 19 core Cable

      0.75 – 1.5mm²

      Type B2 Cable

      (006/120100)

      GBK1533

      054/015846

      Transition Joint Kit for 37 core Cable

      0.75 – 1.5mm²

      Type B2 Cable

      (006/120106)

      GBK1365

      054/015889

      Induction Loop Joint Kit for 37 core Cable

      0.75-1.5mm²

      Type B2 Cable

      (006/120105)

      GBK1090

      054/037114

      Special Lineside Signalling Cable Joint kit for 300/500 Volt 2 Core Cable

      1 - 1.5mm2 Cartridge Point Heater Cable (055/026961)
