Disconnection Boxes/Signal Enclosures

A wide range of Network Rail PADS Approved Disconnection Boxes/GRP Enclosure Systems for many Signalling Applications including:

Signals
Points & Point Clips
AWS
TPWS
Track Circuits
Axle Counters
Remote Control Monitoring
Transformer Dis Boxes
Points Heating
Restricted Clearance
Semi-automatic Track Warning Systems (SATWS)
Level Crossings

All our Dis Boxes are manufactured using PADS Approved Terminals, Locking Systems and Ventilation, we can also supply a wide range of Approved Trackside Mounting options, including Stakes, Frames and Location Base Mounted Plinths.

Products:

PADS Approved

Signals


Part Reference	PADS No.	Description	Enclosure Dimensions HxWxD	Data Sheet / Drawing
GBK4305-CMT	086/000134	12 Way Signal Dis Box c/w 2 x M40 Glands	300x250x140mm	Drawing Pdf, 33 kB.
GBK4150-G	086/000134	12 Way Signal Dis Box c/w 4 x M40 Glands	300x250x140mm	Drawing Pdf, 30 kB.
GBK4151-G	086/000134	12 Way Signal Dis Box c/w 2 x M40 and 2 x M25 Glands	300x250x140mm	Drawing Pdf, 32 kB.
GBK4215-G	086/000135	22 Way Signal Dis Box c/w Glands	400x300x200mm	Data Sheet Pdf, 1 MB.
GBK4329-G	086/000135	24 Way Signal Dis Box c/w Glands	400x300x200mm	Data Sheet Pdf, 40 kB.
GBK4152-G	086/000137	27 Way Signal Dis Box c/w Glands	500x400x200mm	Drawing Pdf, 39 kB.
GBK4323-G	086/000137	31 Way Signal Dis Box c/w Glands	500x400x200mm	Data Sheet Pdf, 48 kB.
GBK4304-G	086/000138	42 Way Signal Dis Box c/w Glands	600x400x210mm	Data Sheet Pdf, 54 kB.

Points


Part Reference	PADS No.	Description	Enclosure Dimensions HxWxD	Data Sheet / Drawing
GBK4306-G	086/000134	8 Way 4 + 4 Point Machine Dis Box c/w Glands	300x250x140mm	Drawing Pdf, 29 kB.
GBK4307-G	086/000135	10 + 10 Point Machine Dis Box c/w Glands	400x300x200mm	Drawing Pdf, 35 kB.
GBK4216-CL	086/000137	35 Way Clamplock Point Machine Dis Box c/w Glands	500x400x200mm	Data Sheet Pdf, 2 MB.
GBK4155-G	086/000139	20 + 16 + 4 (10mm) Clamplock Point Machine Dis Box c/w Glands	600x500x230mm	Drawing Pdf, 45 kB.
GBK4330		4+27+29 Way Clamplock Points Super Dis Box
GBK4331		14 Way Hi-Drive Point Machine Dis Box
GBK4216-HW	086/000137	35 Way HW Point Machine Dis Box c/w Glands	500x400x200mm	Data Sheet Pdf, 2 MB.
GBK4156-G	086/000139	20 + 12 + 8 (10mm) HW Point Machine Dis Box c/w Glands	600x500x230mm	Drawing Pdf, 45 kB.
GBK4302	086/000141	Point Clip Enclosure	800x600x300mm	Drawing Pdf, 25 kB.
GBK4356-G		12 Way 2BA WM/WC Point Machine Dis Box c/w Terminals, Shrouds and Glands	400x300x200mm	Data Sheet Pdf, 233 kB.

Axle Counters


Part Reference	PADS No.	Description	Enclosure Dimensions HxWxD	Data Sheet / Drawing
GBK4315-CMT	086/00034	4 Way Axle Counter c/w 2 x 20mm Glands	300x250x140mm	Drawing Pdf, 29 kB.
GBK4144-ACHV	086/000136	4 Way Axle Counter c/w Hose Adaptor	300x250x140mm	Drawing Pdf, 30 kB.

AWS

Part Reference
PADS No.
Description
Enclosure Dimensions HxWxD
Data Sheet / Drawings
GBK4149-G
086/000134
8 Way AWS Dis Box c/w Glands
300x250x140mm
Drawing Pdf, 30 kB.

Part Reference	PADS No.	Description	Enclosure Dimensions HxWxD	Data Sheet / Drawings
GBK4149-G	086/000134	8 Way AWS Dis Box c/w Glands	300x250x140mm	Drawing Pdf, 30 kB.

TPWS

Part Reference
PADS No.
Description
Enclosure Dimensions HxWxD
Data Sheet / Drawings
GBK4150-G
-
6 Way TPWS Dis Box c/w Glands
300x250x140mm

Part Reference	PADS No.	Description	Enclosure Dimensions HxWxD	Data Sheet / Drawings
GBK4150-G	-	6 Way TPWS Dis Box c/w Glands	300x250x140mm

Track Circuits

Part Reference
PADS No.
Description
Enclosure Dimensions HxWxD
Data Sheet / Drawings
GBK4163-G
086/000134
6 Way Track Circuit Dis Box c/w Glands
300x250x140mm
Drawing Pdf, 34 kB.

Part Reference	PADS No.	Description	Enclosure Dimensions HxWxD	Data Sheet / Drawings
GBK4163-G	086/000134	6 Way Track Circuit Dis Box c/w Glands	300x250x140mm	Drawing Pdf, 34 kB.

Restricted Clearance


Part Reference	PADS No.	Description	Enclosure Dimensions HxWxD
GBK4303-G	086/000137	27 Way Restricted Clearance Signal Dis Box	400x500x200mm
CPTK2934-H1	086/001498	3 Point GRP Enclosure c/w Drop Down Door, Mounting Plate,Vents and Cable Managemt (1 Battern)	500x600x230mm
CPTK2934-H2	086/001499	3 Point GRP Enclosure c/w Drop Down Door, Mounting Plate,Vents and Cable Managemt (2 Batterns)	500x600x230mm
CPTK3048-H	086/001500	3 Point GRP Enclosure c/w Drop Down Door, Mounting Plate,Vents and Cable Managemt (Up to 3 Batterns)	600x800x300mm

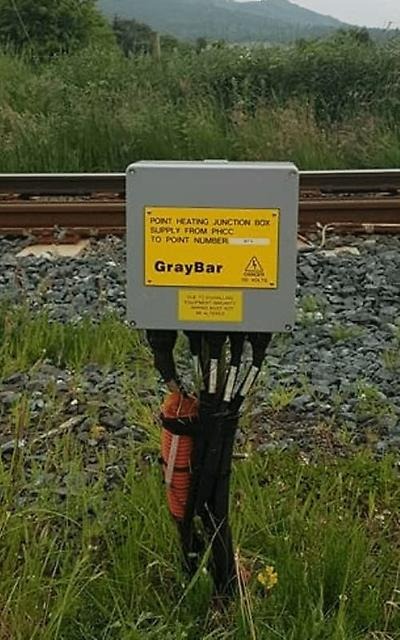

Points Heating


Part Reference	PADS No.	Description	Enclosure Dimensions HxWxD	Data Sheet / Drawing
GBK1774P	055/020813	8 Way Points Heating Junction Box c/w Stainless Steel Post	255x250x120mm	Data Sheet Pdf, 232 kB.
GBK1493P	055/021034	16 Way Points Heating Junction Box . c/w Stainless Steel Post	400x400x120mm	Data Sheet Pdf, 108 kB.
GBK1774VG	055/020813	8 Way Points Heating Junction Box c/w GRP Assembly	255x250x120mm
GBK1493VG	055/021034	16 Way Points Heating Junction Box c/w GRP Assembly	400x400x120mm
GBP4127P	086/000134	8 Way Points Heating Dis Box c/w GRP Mounting Assembly	300x250x140mm	Data Sheet Pdf, 2 MB.
GBK4128P	086/000136	16 Way Points Heating Dis Box c/w GRP Mounting Assembly	400x400x200mm	Data Sheet Pdf, 2 MB.
GBK4201PB	086/000134	2 Way Universal Junction Box for Hot & Cold Probes c/w Stainless Steel Post	300x250x140mm
GBK4202PB	086/000134	4 Way Junction Box for Clamp Lock Heaters c/w Stainless Steel Post	300x250x140mm
GBK4246PB	086/000134	8 Way Junction Box for Heater Strips (2 sets of points) c/w Stainless Steel Post	300x250x140mm

GRP Mounting Assemblies


Part Ref.	PADS No.	Description	Enclosure PADS No.	Enclosure Dimensions HxWxD	Data Sheet /Drawings
GBK4136	086/001501	1370mm GRP Stake	086/001501	300x250x140mm	Datasheet Pdf, 686 kB.
GBK4137	086/001502	1495mm GRP Dis Box Mounting Assembly	086/001502	400x300x200mm	Datasheet Pdf, 105 kB.
GBK4138	086/001503	1495mm GRP Dis Box Mounting Assembly	086/001503	400x400x200mm	Datasheet Pdf, 105 kB.
GBK4139	086/001504	1495mm GRP Dis Box Mounting Assembly	086/001504	500x400x200mm	Datasheet Pdf, 105 kB.
GBK4140	086/001505	1495mm GRP Dis Box Mounting Assembly	086/001505	600x400x210mm	Datasheet Pdf, 105 kB.
GBK4141	086/001506	1495mm GRP Dis Box Mounting Assembly	086/001506	600x500x230mm	Datasheet Pdf, 105 kB.
GBK4142	086/001507	2000mm GRP Dis Box Mounting Assembly	086/001507	800x300x230mm	Datasheet Pdf, 105 kB.
GBK4143	086/001508	2000mm GRP Dis Box Mounting Assembly	086/001508	800x600x300mm	Datasheet Pdf, 105 kB.
GBK4332S-65		GRP Roller Stool Mounting Assembly c/w Cable Bar
GBK4220S-325		GRP Roller Stool Mounting Assembly c/w Cable Bar

GRP 2BA Dis Box Mounting Assemblies


Part Ref.	PADS No.	Description	Enclosure Dimensions HxWxD	Data Sheet /Drawings
GBK4308-D3	-	GRP Mounting Assembly For 1 2BA Dis Box	1700x300mm	Datasheet Pdf, 226 kB.
GBK4309-D2	-	GRP Mounting Assembly For 2 2BA Dis Boxes	1700x520mm	Datasheet Pdf, 210 kB.
GBK4301-D1	-	GRP Mounting Assembly For 3 2BA Dis Boxes	1700x950mm	Datasheet Pdf, 231 kB.

GRP Plinths


Part Reference	PADS No.	Description	Enclosure Dimensions HxWxD
CPTK3216	086/001477	500mm GRP Plinth c/w Half Loc Interface Plate	400x300x200mm
CPTK3217	086/001478	750mm GRP Plinth c/w Half Loc Interface Plate	400x300x200mm
CPTK3126	086/001479	1000mm GRP Plinth c/w Half Loc Interface Plate	400x300x200mm
CPTK3218	086/001480	500mm GRP Plinth c/w Half Loc Interface Plate	400x400x200mm
CPTK3219	086/001481	750mm GRP Plinth c/w Half Loc Interface Plate	400x400x200mm
CPTK3220	086/001482	1000mm GRP Plinth c/w Half Loc Interface Plate	400x400x200mm
CPTK3221	086/001483	500mm GRP Plinth c/w Half Loc Interface Plate	500x400x200mm
CPTK3222	086/001484	750mm GRP Plinth c/w Half Loc Interface Plate	500x400x200mm
CPTK3223	086/001485	1000mm GRP Plinth c/w Half Loc Interface Plate	500x400x200mm
CPTK3224	086/001486	500mm GRP Plinth c/w Half Loc Interface Plate	600x400x210mm
CPTK3225	086/001487	750mm GRP Plinth c/w Half Loc Interface Plate	600x400x210mm
CPTK3226	086/001488	1000mm GRP Plinth c/w Half Loc Interface Plate	600x400x210mm
CPTK2938	086/001489	500mm GRP Plinth c/w Half Loc Interface Plate	600x500x230mm
CPTK3088	086/001490	750mm GRP Plinth c/w Half Loc Interface Plate	600x500x230mm
CPTK3219	086/001491	1000mm GRP Plinth c/w Half Loc Interface Plate	600x500x230mm
CPTK3220	086/001492	500mm GRP Plinth c/w Half Loc Interface Plate	800x300x230mm
CPTK3221	086/001493	750mm GRP Plinth c/w Half Loc Interface Plate	800x300x230mm
CPTK3222	086/001494	1000mm GRP Plinth c/w Half Loc Interface Plate	800x300x230mm
CPTK3232	086/001495	500mm GRP Plinth c/w Half Loc Interface Plate	800x600x300mm
CPTK3244	086/001496	750mm GRP Plinth c/w Half Loc Interface Plate	800x600x300mm
CPTK3255	086/001497	1000mm GRP Plinth c/w Half Loc Interface Plate	800x600x300mm

Transformer Dis Boxes

Part Reference	Description	Data Sheet/Drawing
GBK4382	3 Aspect Light Rail (LEU) Transformer Dis Box	Data Sheet Pdf, 3 MB.
GBK4383	4 Aspect Light Rail (LEU) Transformer Dis Box	Data Sheet Pdf, 3 MB.
GBK4384	Mounting Assembly GRP 1300mm H for Light Rail (LEU) Dis Box	Data Sheet Pdf, 3 MB.
GBK4432-G	Disconnection Box AWS Transformer Dis Box
GBK4240S-64	Mounting Assembly GRP Roller Stool for AWS Dis Box

Unpopulated Enclosures


CPTK No.	PADS No.	BRES No.	Enclosure Dimensions HxWxD
CPTK2903	086/000134	BRES-325	300x250x140mm
CPTK3094	086/000135	BRES-43-3L	400x300x200mm
CPTK2878	086/000136	BRES-44-3L	400x400x200mm
CPTK3066	086/000137	BRES-54-3L	500x400x200mm
CPTK3096	086/000138	BRES-64-3L	600x400x210mm
CPTK3097	086/0001349	BRES-65-3L	600x500x230mm
CPTK3127	086/000140	BRES-83-3L	800x600x230mm
CPTK3098	086/0001141	BRES-86-3L	800x600x300mm

Universal Dis Boxes

CPTK No.
PADS No.
Description
Enclosure Dimensions HxWxD
Data Sheet / Drawings
GBK4213
-
6 Way Dis Box c/w Glands and Blanking Plugs
300x250x140mm
Data Sheet Pdf, 2 MB.

CPTK No.	PADS No.	Description	Enclosure Dimensions HxWxD	Data Sheet / Drawings
GBK4213	-	6 Way Dis Box c/w Glands and Blanking Plugs	300x250x140mm	Data Sheet Pdf, 2 MB.

2BA GRP Disconnection Boxes


Part No.	Description	2BA Dis Box PADS Ref	Enclosure/ Frame PADS Ref	Enclosure Dimensions HxWxD	Data Sheet /Drawings
GBK4380-G	2BA Small Disconnection Box For Track Circuit Applications Style 11211	086/43877	086/000134	300x250x140mm	Drawing Pdf, 47 kB.
GBK4379-G	2BA Small Disconnection Box For AWS Applications Style 2002	086/43880	086/000134	300x250x140mm	Datasheet Pdf, 139 kB.
GBK4388-G	2BA Small Disconnection Box For 2 x 4 Core Cables Style 4004	086/43886	086/000134	300x250x140mm
GBK4392-G	2BA Small Disconnection Box For TPWS Apllications 6 Way	086/10761	086/000134	300x250x140mm
GBK4375-G	2BA Small Extended Disconnection Box For TPWS Apllications 6 Way	086/10762	086/000134	300x250x140mm
GBK4374-G	2BA Small Disconnection Box 6 Way Combined TPWS/AWS	086/43880 086/10761	086/000137	300x250x140mm	Datasheet Pdf, 150 kB.
GBK4373-G	2BA Large Disconnection Box 12 Way	086/10753	086/000135	400x300x200mm	Datasheet Pdf, 148 kB.
GBK4389-G	2BA Disconnection Box 10+10 Way For Hy-Drive SO Unit	086/010700	086/000136	400x400x200mm
GBK4390-G	2BA Medium Disconection Box 4+4 Way For Point Machines	088/000502	086/000136	400x400x200mm
GBK4391-G	2BA Medium Disconection Box 10+4 Way For Point Machines	088/000503	086/000136	400x400x200mm
GBK4356-G	2BA Large Disconnection Box 12 Way For WM-WC Point Machines		086/000135	400x300x200mm	Datasheet Pdf, 233 kB.
GBK4405	24 Way 2BA WM Point Machine Dis Box Enclosure		086/00135	400x300x200mm	Datasheet Pdf, 35 kB.
GBK4406	24 Way 2BA SO Point Machine Dis Box Enclosure		086/00135	400x300x200mm	Datasheet Pdf, 34 kB.
GBK4136	1370mm GRP Stake	086/088261	086/001501	300x250x140mm
CPTK4394	External Mounting Plate Kit for GBK4136			300x250x140mm
GBK4375	Mounting Frame GRP 1495mm c/w Cable Bar			300x250x140mm
GBK4381	Mounting Frame GRP 1495mm c/w Cable Bar For Two Dis Boxes			300x250x140mm
GBK4137	Mounting Frame GRP 1495mm c/w Cable Bar		086/001502	400x300x200mm
GBK4138	Mounting Frame GRP 1495mm c/w Cable Bar		086/001503	400x400x200mm
GBK4381	1495mm GRP Dis Box Mounting Assembly			300x250x140mm	Drawing Pdf, 56 kB.
CPTK2968-B	Dis Box Wall Mounting Kit		086/000144	Fits all sizes

Level Crossings


Part Reference	PADS No.	Description	Dimensions HxWxD
GBK4253-L	086/000136 086/001481	Driver Operated Control Cabinet - Left Hand Door Opening	1150x400x200mm
GBK4253-R	086/000136 086/001481	Driver Operated Control Cabinet - Right Hand Door Opening	1150x400x200mm

Enclosure Accessories


Part Reference	PADS No.	Description	Enclosure Dimensions HxWxD
CPTK3233	086/001525	Nylon Cable Clamp	For All Enclosures
CPTK2968-B	086/000144	Wall Mounting Kit	For All Enclosures
CPTK3051	086/001513	Stainless Steel Padlock Hasp	300x250x140mm
CPTK2915	086/001514	Stainless Steel 1/4 Turn Knob c/w Cam	300x250x140mm
GBK1936	086/001515	Brush Cable Management System	400x300x200mm
GBK1936	086/001516	Brush Cable Management System	400x400x200mm
GBK1936	086/001517	Brush Cable Management System	500x400x210mm
GBK1936	086/001518	Brush Cable Management System	600x400x210mm
GBK1936	086/001519	Brush Cable Management System	600x500x230mm
GBK1936	086/001520	Brush Cable Management System	800x300x230mm
GBK1936	086/001521	Brush Cable Management System	800x600x300mm
CPTK3234	086/001522	Water Drain Kit	All Enclosures except 300x250x140mm
CPTK3265	086/001524	Lock Dust Cover	300x250x140mm
CPTK3258	086/001526	Door Document Holder	All Enclosures except 300x250x140mm
CPTK3496	086/001527	Restricted Clearance Door Retainer Kit	All Enclosures except 300x250x140mm
CPTK3262-SRS	086/001523	Small Roller Stool Interface Plate c/w Fixings	All Enclosures except 300x250x140mm
CPTK3262-LRS	086/001523	Large Roller Stool Interface Plate c/w Fixings	All Enclosures except 300x250x140mm
CPTK3262-SPT	086/001523	Signal Post Telephone Interface Plate c/w Fixings	All Enclosures except 300x250x140mm
CPTK3262-HL	086/001523	Half Location Stool Interface Plate c/w Fixings	All Enclosures except 300x250x140mm
GBK4-GRPHLB	N/A	GRP Half Location Base c/w Fixings	All Enclosures except 300x250x140mm
