Part Reference | PADS No. | Description | Enclosure Dimensions HxWxD | Data Sheet / Drawing |
---|---|---|---|---|
GBK1774P | 055/020813 | 8 Way Points Heating Junction Box c/w Stainless Steel Post | 255x250x120mm | |
GBK1493P | 055/021034 | 16 Way Points Heating Junction Box . c/w Stainless Steel Post | 400x400x120mm | |
GBK1774VG | 055/020813 | 8 Way Points Heating Junction Box c/w GRP Assembly | 255x250x120mm | |
GBK1493VG | 055/021034 | 16 Way Points Heating Junction Box c/w GRP Assembly | 400x400x120mm | |
GBP4127P | 086/000134 | 8 Way Points Heating Dis Box c/w GRP Mounting Assembly | 300x250x140mm | |
GBK4128P | 086/000136 | 16 Way Points Heating Dis Box c/w GRP Mounting Assembly | 400x400x200mm | |
GBK4201PB | 086/000134 | 2 Way Universal Junction Box for Hot & Cold Probes c/w Stainless Steel Post | 300x250x140mm | |
GBK4202PB | 086/000134 | 4 Way Junction Box for Clamp Lock Heaters c/w Stainless Steel Post | 300x250x140mm | |
GBK4246PB | 086/000134 | 8 Way Junction Box for Heater Strips (2 sets of points) c/w Stainless Steel Post | 300x250x140mm |

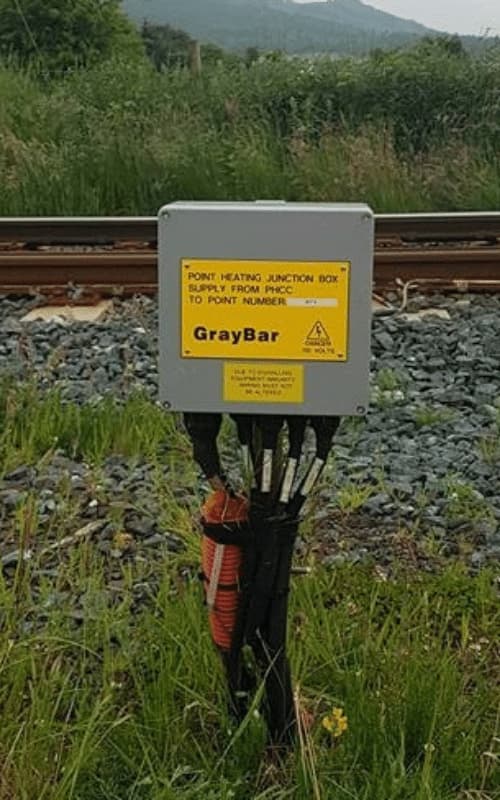

![](/images/18.7fbef70417ab1ae8fff1561/1628861500380/(2)%20Points_Heating_Enclosure_1%20500x800px.jpg)

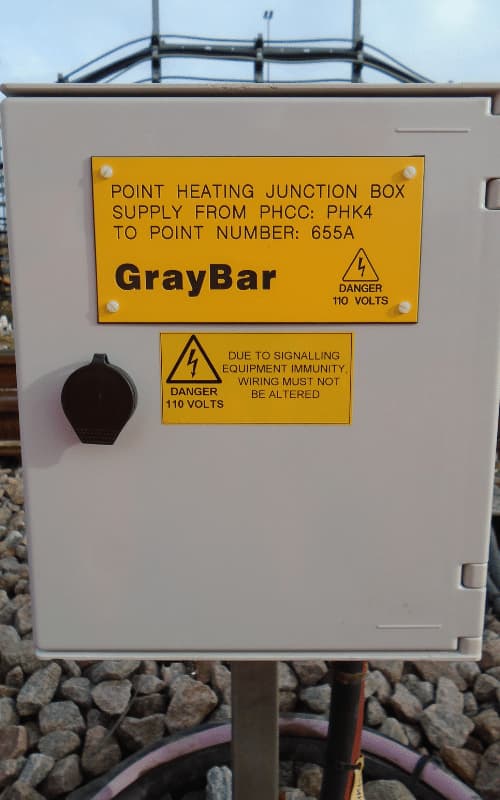

![](/images/18.7fbef70417ab1ae8fff1555/1628861410540/(2)%20Points_Heating_%20Enclosure_3%20500x800px.jpg)
![](/images/18.7fbef70417ab1ae8fff155e/1628861475407/(2)%20Points_Heating_Enclosure_2%20500x800px.jpg)
![Tube Lines](/images/18.7fbef70417ab1ae8fff1559/1628861457788/(2)%20Tube_Lines%20500x800px.jpg)
![GBK4201PB](/images/18.521b1d3d17e5b499ae71f2/1642503256727/Enclosures%20GBK4201PB%20500x800px.jpg)
